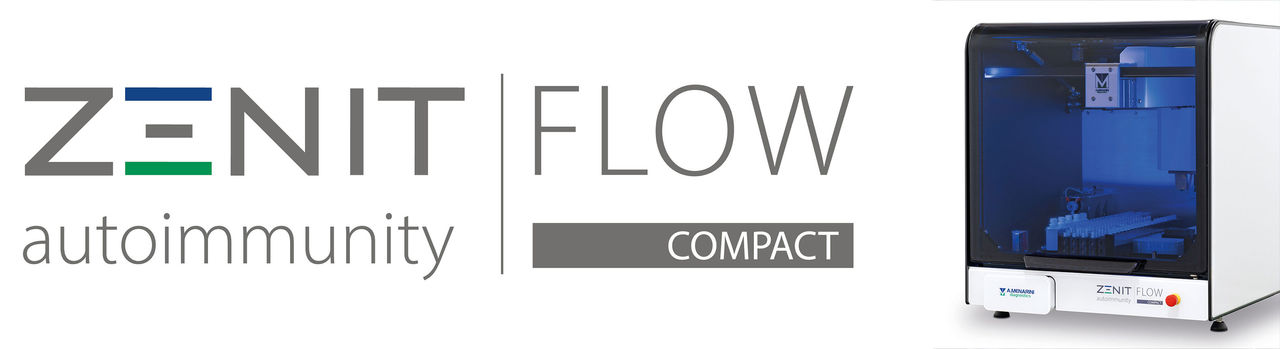

ZENIT FLOW Compact

ZENIT FLOW Compact is the new A.Menarini Diagnostics automated IIF slide processor that provides the best option to increase lab productivity in a minimum bench space.

System Capacity
  • Up to 150 samples: 5 x 30-tubes racks
  • Up to 15 slides: 1 x 15-slides racks
  • Up to 288 wells for dilution and titration: 3x96-well plates, 1.2 ml volume
Optimized workflow
  • Automatic samples pre-dilutions from different primary tubes in the same analytical session
  • 2 needles: 1 precision probe and 1 for aspiration
  • The slides at the end of the process are completely mounted, including media and coverslip
  • Open configuration for multiple IIF assays set-up
  • Automatic calculation of reagent volume consumption
  • 1D and 2D integrated barcode readers for full reagent and samples traceability
Standardized results
  • High-precision pipetting
  • Capacitive level sensor for reliable pipetting performance
  • From 5μ to 1000μl pipetting volume
  • Standardization of the washing phase
    • Separate channels for dispensation and aspiration of the washing liquid
    • Two different washing modes for cells and tissues (multi drop or continuous flow)
  • Avoid carry over contamination
  • Metal needles, (not coated), washable internally and externally

ZENIT FLOW Compact + ZENIT FAST: A winning combination in IIF slide preparation and scanning

ZENIT FLOW Compact is designed to work with ZENIT fast to increase lab productivity thanks to parallel processing and scanning. This configuration can be easily adapted to any routine due to exceptional flexibility and modularity.

Parallel slide processing and scanning with no lead time

15-slide workload of ZENIT FLOW Compact can combine with the ZENIT fast series-load batches, for true parallel operation of devices to increase overall throughput and minimize the time-to-result.

Modularity
  • One Single PC working station to manage both ZENIT FLOW Compact and ZENIT fast
  • Multiple ZENIT FLOW and ZENIT fast units can be connected to one single PC working station
  • ZENIT Hub centralised middleware ensuring full traceability and Bi-directional LIS connection
  • Throughput can be increased and tailored according to the user's needs

SLIDE PROCESSING

Traceability

Samples: Linear barcode reader with focal adjustment Slides: Data matrix, Aztec Code, Han Xin, Micro QR Code and QR Code.

Slides capacity

Up to 15 slides

Samples capacity

Up to 150 samples

N. Controls

Up to 20 vials

N. Diluent

Up to 5 slots for diluent bottles

N. Reagents

Up to 8 slots for conjugate and mounting media bottles

N. coverslips

1x Dispenser with a capacity of up to 30 coverslips each (referred to 24x60x0.1mm and 24x64x0.1mm)

Dilution cuvettes

288 (3x 96-wells consumable blocks, 1.2mL volume)

Probes

2 (1 precision needles and 1 for aspiration)

Slide washing

Continuous flow or multi drop

Liquid Detection

Capacitive level sensor

Pipetting volume

5* μl -1000 μl

External tanks (with sensors)

2x5L Buffers, 1x5L Wash, 1x5L Waste

* The minimum dispensing volume of 5 μl can be used for mounting medium dispensing. The minimum volume during dilution phase is 10 μl

Environmental setting - Work session

Temperature

15-35 °C

Humidity

35% - 80% non condensing

Power supply, Entry level

AC 100-240V at 50/60 Hz

Power Consumption

Max 150VA

Acoustic Emissions

<63db (1mt), <72db Alarm

Altitude

< 2000m

Transport/storage

Device Size (WHD)

6700cmx74cmx84cm

Device Weight

77 kg

Packaging Size (WHD)

85cmx96cmx94cm

Weight of the instrument
inside the crate

130 kg

Temperature

from 0 to 55 °C

Humidity

20%-85% RH (No dew condensation or icing allowed),

ZENIT FLOW Compact is an open platform and can host multiple IIF assays set-up.

For more information regarding A.Menarini Diagnostics Zenit IFA reagents portfolio, please visit the dedicated web page IFA.
