sediMAX LITE
The information to be found in this section is intended for the exclusive use of healthcare professionals.
- FEATURES
- TECHNICAL DATA
- QC

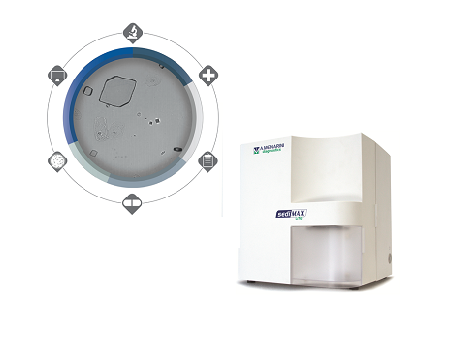

sediMAX LITE is a professional semi-automated urine microscopy analyzer which improves accuracy, reproducibility, safety and productivity in laboratories, by producing whole field microscopic images of urine sediment and automatically classifying and counting urine sediment particles in the images.
sediMAX LITE utilizes the traditional gold standard method while eliminating the most time-consuming and operator-dependent laboratory procedures of manual microscopy. It can also serve as a backup instrument for automated sediment analyzers.
Easy operation with minimal training needs
Highly effective for small labs and emergency departments
Manual microscopy mode: real-time view of any viewfield of the cuvette (ideal for moving microorganisms)
User friendly and flexible software for data management, result validation and reporting
Cost-effective operation without liquid reagents or calibrators
Throughput
up to 60 samples/hour (depending on the operator)
Memory
up to 10000 measurements (with all the recorded images)
Dilution factor
1-100 setting available
Size
315 (W) x 320 (D) x 330 (H) mm
Weight
13.5 kg
Power Main Unit
100-240 VAC, 50-60 Hz, Max. 8 A
Operation temperature
15-30 °C
Operation humidity
20-80 %
Storage temperature
(-20) °C - (+60) °C
Storage humidity
20-80%
Cuvette package
600 (12 cuvette holders/box, 50 cuvettes/cuvette holder)
Max cuvette load
50 pcs (1 cuvette holder)
Sample volume
175 μL
Centrifuging speed
2000 RPM
Centrifuging time
10 s
Number of images per sample
15
Positions of images
Non overlapping fields near each other at the middle of the cuvette.
Magnification
Corresponds to HPF-like magnifification microscopic image.
Image size
1280x960 pixels
Viewfield volume
corresponds to about 0.15 μL of native urine
Waste bin size
approx. 200 measurements
