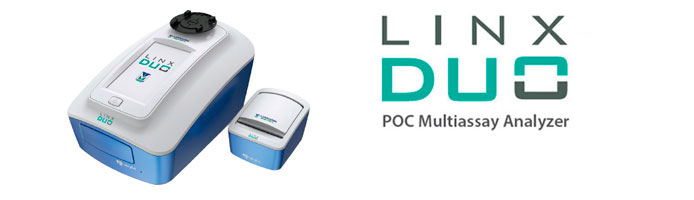

NO LINX DUO
The information to be found in this section is intended for the exclusive use of healthcare professionals.
- FEATURES
- QUICK GUIDE
- TECHNICAL DATA
- QC SUPPORT
Meeting the clinical demand for quick, reliable results when and where they are needed
Get results in a few minutes
Two specimens per run
No need to warm up reagents before testing
Fully automated operations
Thermal printer and data manager PC software supported
Maintenance free
Intuitive user interface and multiple language functions
Main specifications
| Item | Testing time | Sample volume | Sample type | Compatible test tubes | Measurement principle |
| HbA1c | 6.5 min | 0.8 µL | Fingertip blood and venous whole blood | EDTA | Immunoassay (turbidimetric) |
| CRP | 6.5 min | 5 µL | Fingertip blood, serum, plasma and venous whole blood | Li-heparin, EDTA, clot activator | Immunoassay (turbidimetric) |
| Lipid Panel Plus (TC, TG, HDL, LDL#, VLDL#, GLU) | 10 min | 30 µL | Fingertip blood, serum, plasma and venous whole blood | Li-heparin, clot activator | Enzyme assay (colorimetric) |
| #calculated item | |||||
LINX DUO makes testing more accessible and enables rapid clinical decision making, discussion and implementation of optimized treatment.

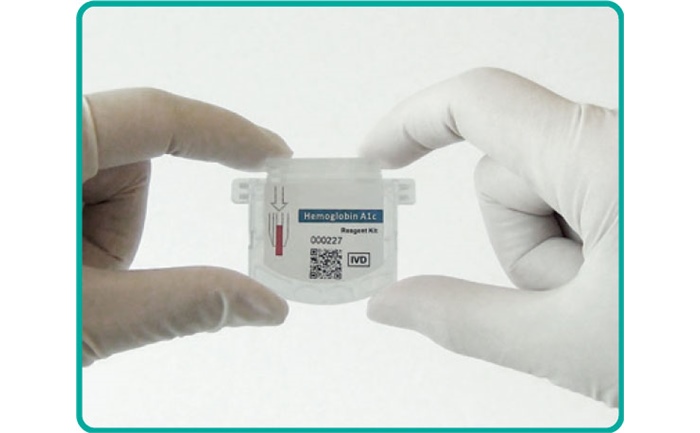

STEP 1: Use the reagent pack to collect the sample

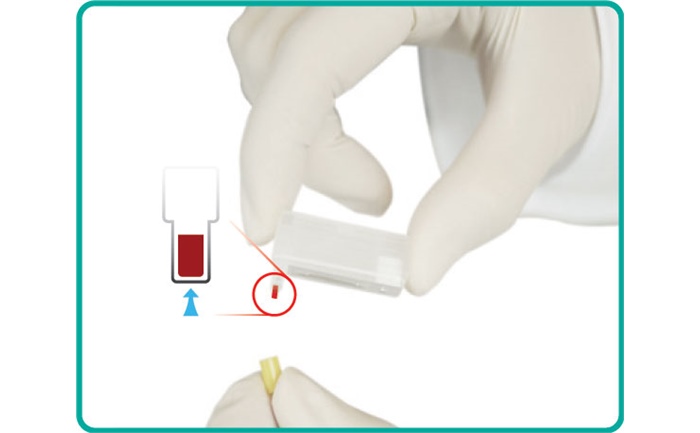

STEP 2: Insert the sample into the cartridge

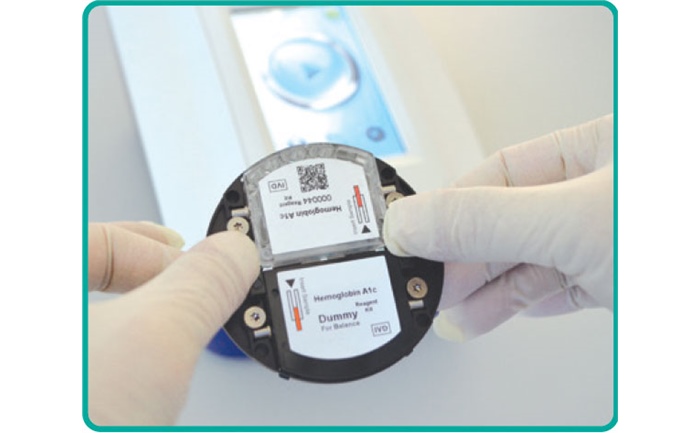

STEP 3: Put the cartridge onto the carrier

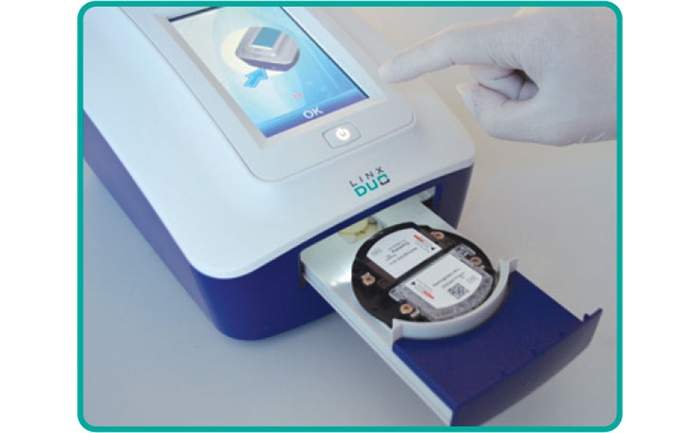

STEP 4: Insert the carrier and then press “OK” to start analyzing

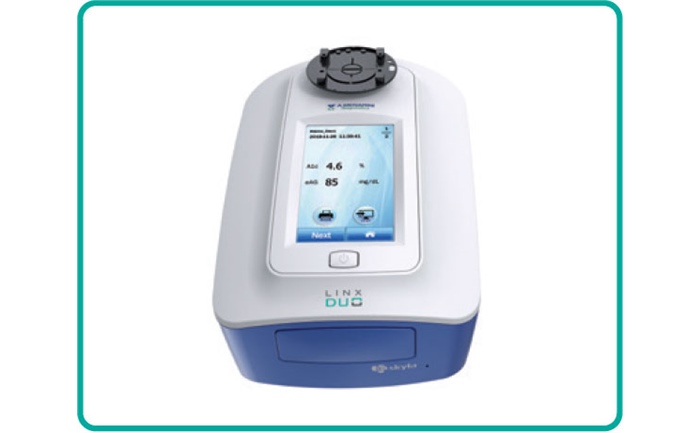

STEP 5: Read the results
Display and interface
5” TFT color LCD touch screen
Memory capacity
50,000 test results
Dimensions (analyzer)
270 x 188 x 148 mm
Weight (analyzer)
1.7 kg
Dimensions (printer)
134 x 100 x 82.7 mm
Weight (printer)
0.37 kg
Power supply
100-240 V (AC), 50-60 Hz
Data transmission
USB 2.0 (4 ports); micro USB 3.0 (1 port); RS232 (1 port); RJ45 Ethernet (1 port); WLAN (optional Wi-Fi dongle)
Reagent storage
2-8 °C
Reagent stability at RT (15-25 °C)
HbA1c: 3 months; CRP: 1 month; Lipid Panel Plus: 3 months
Operating conditions
10-32 °C, relative humidity <95% (non-condensing)
